Multiwall polycarbonate is the ideal solution for roofing of both large and small dimensions: it is selected for canopies, DIY applications, garage roofs, pedestrian tunnels or roofing for industrial buildings. This versatility derives from its light transmission properties, resistance to hail impact and maximum protection against UV radiation, without overlooking ease of installation. A wide range of corrugated and trapezoidal products is available to select the panel best suited to specific requirements and compatible with the most common opaque sandwich panels on the market.

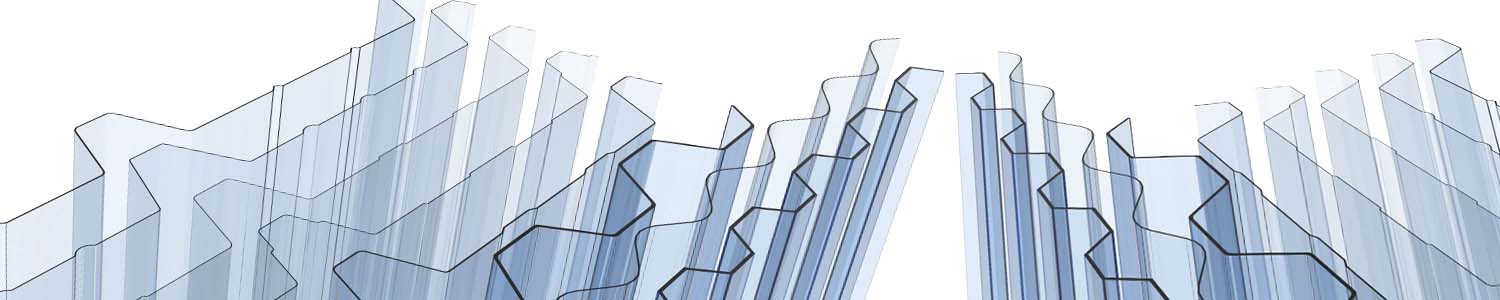

Range of solid sheets with greca square wave and circular wave corrugated profiles with UV protection

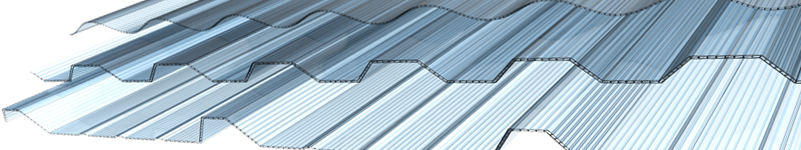

Range of greca square wave and circular wave corrugated micro-multiwall panels with UV protection
| PROFILE | LIGHT TRANSMISSION(τ v ) % |
SOLAR FACTOR(g) % |
SHADING COEFFICIENT (SC) |
THERMAL TRANSMITTANCE(U) W/m 2 K |
SOUNDPROOFING (R w ) dB |
thickness mm |
Walls number |
|---|---|---|---|---|---|---|---|
| arcoPlus® SUPER1000 | 1,8 | 16 | |||||
| Crystal | 65 | 66 | 0,76 | ||||
| Opal | 47 | 52 | 0,60 | ||||
| arcoPlus® 1000 | 2,7 | 16 | |||||
| Crystal | 70 | 74 | 0,85 | ||||
| Opal | 40 | 45 | 0,52 | ||||
| arcoPlus® MiniGreca5 | 2,5 | 16 | |||||
| Crystal | 72 | 76 | 0,87 | ||||
| Opal | 47 | 52 | 0,60 |
