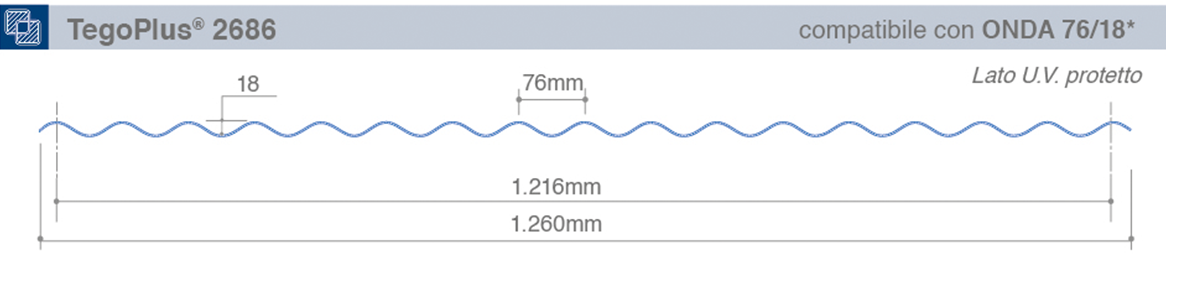

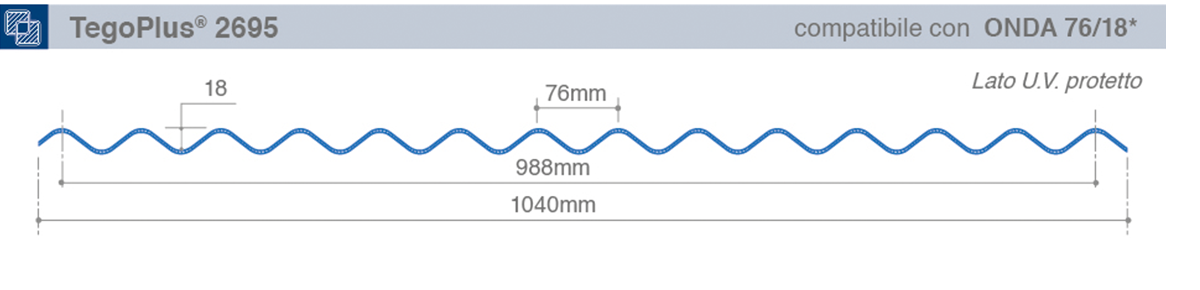

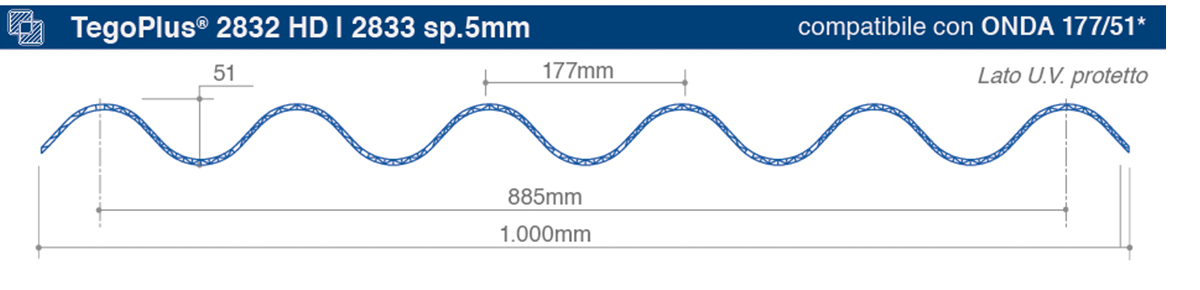

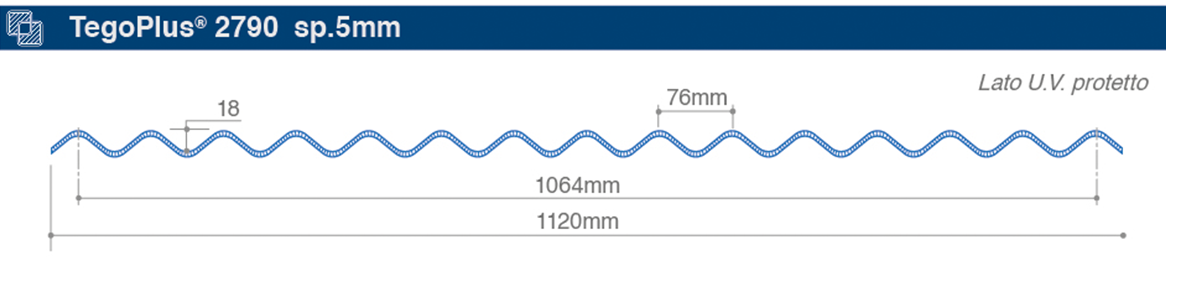

Micro-multiwall corrugated overlapping panels with UV protection on the external side, which allow for maximum illumination of indoor environments with natural light. A range that is continuously updated to meet the needs of the construction sector; in fact, these products have greca square wave and circular wave corrugated profiles compatible with the most used insulated roofing panels. Thanks to the possibility of lateral overlapping, TegoPlus panels are suitable for the creation of greca square wave corrugated continuous roofing, intra-pitch skylights and ridge-eaves skylights for greenhouses/depots/industrial buildings/verandas/garages and countless other DIY needs. To improve the technical performance of the skylights, a false ceiling is often combined with our Velario® multiwall sheets. As indicated by the appropriate symbol, for some profiles correct lateral overlapping of greca square wave corrugated panels provides for the overlapping of at least one complete greca (high + low).

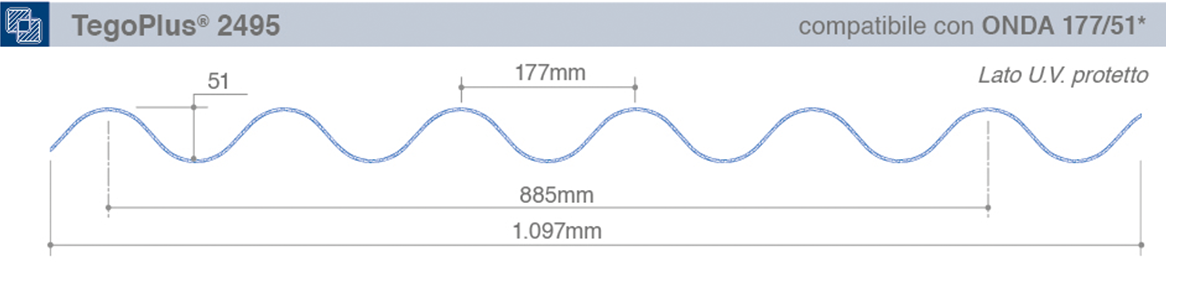

| Panel length | 5,000mm (max recommended) |
|---|---|
| Thickness | 2,5mm / 5,0-6,0mm |
| Thermal insulation | 4,6W/m2K |
| Colori standard | crystal - opal |
| Operating temperature | -40 ÷ 120 oC |
|---|---|
| Linear thermal expansion | 0,065 mm/moC |
| UV protection | Co-extrusionexternal side |
| Reaction to fire EN 1350-1 | EuroClass B-s1,d0 |
| MIN slopeima copertura continua | 7% |
| MIN slopeima lucernario | 5% |
| Light transmission | Clear 85% |
| Light transmission | Opal 70% |
| Facilità di posa e di movimentazione | |
| Longitudinal and transversal overlap | |
| Panels supplied with thermally sealed ends | |
| Resistenza alla grandine | |
| Resistenza ai raggi UV | |
| Lightweight |
| Prodotto | Spessore | Passo greca | Lunghezza | Passo utile | Compatibilità |
|---|---|---|---|---|---|

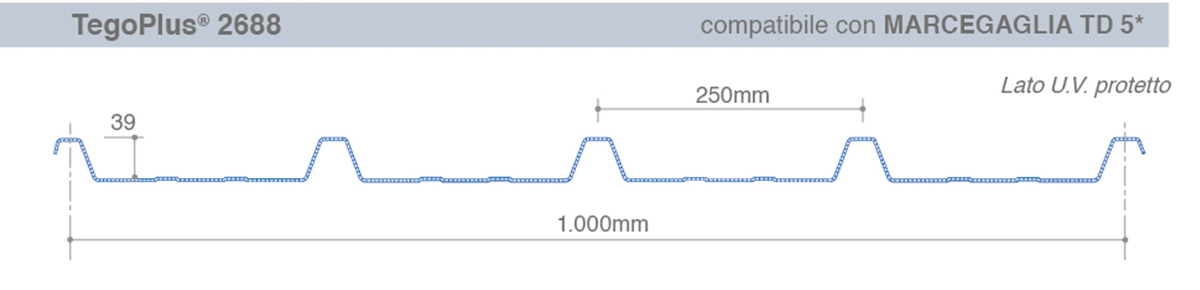

| TegoPlus 2688 | 250mm | 1000mm | Marcegaglia TD5 | ||

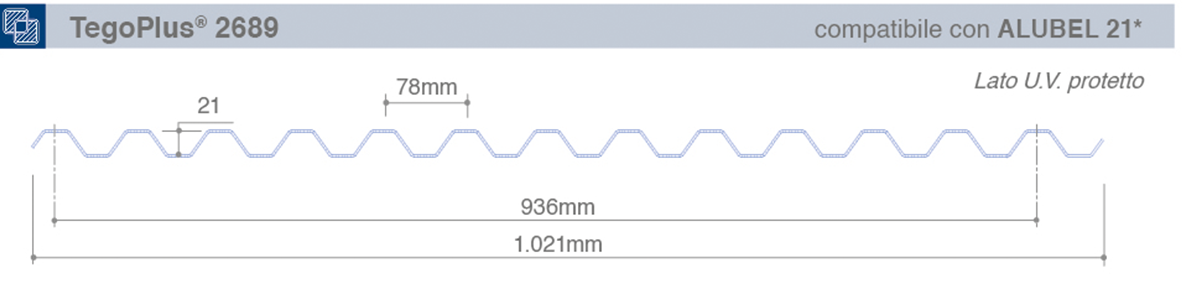

| TegoPlus 2689 | 78mm | 1021mm | 936mm | Alubel 21 | |

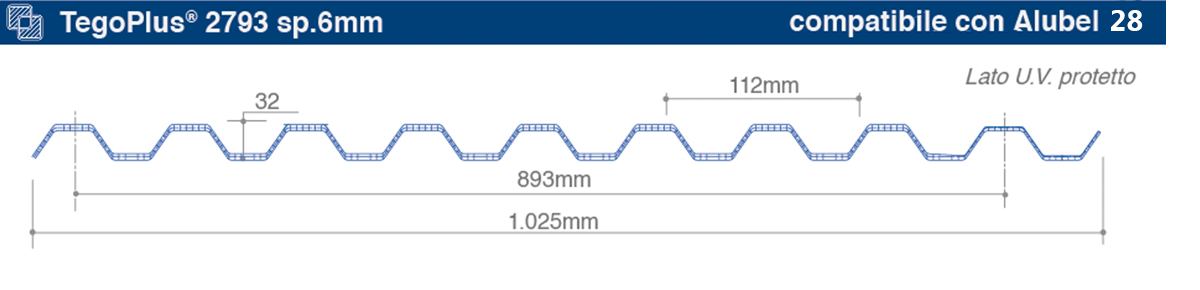

| TegoPlus 2793 | 6mm | 112mm | 1025mm | 893mm | Alubel 28 |

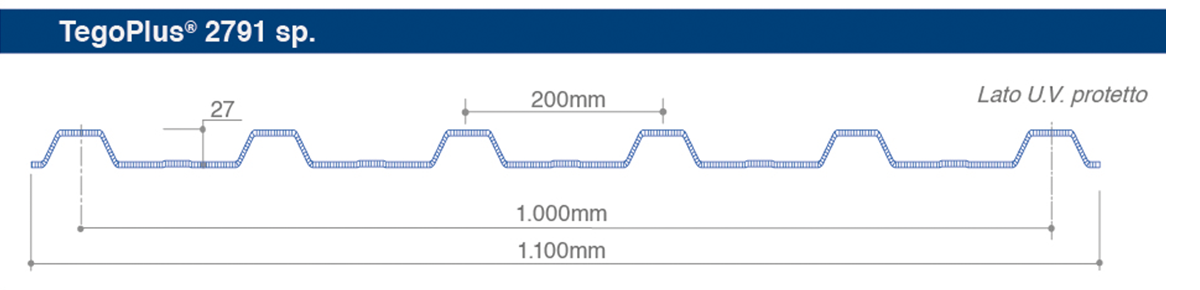

| TegoPlus 2791 | 200mm | 1100mm | 1000mm | ||
| TegoPlus 2771 | 200mm | 1100mm | 1000mm | ||

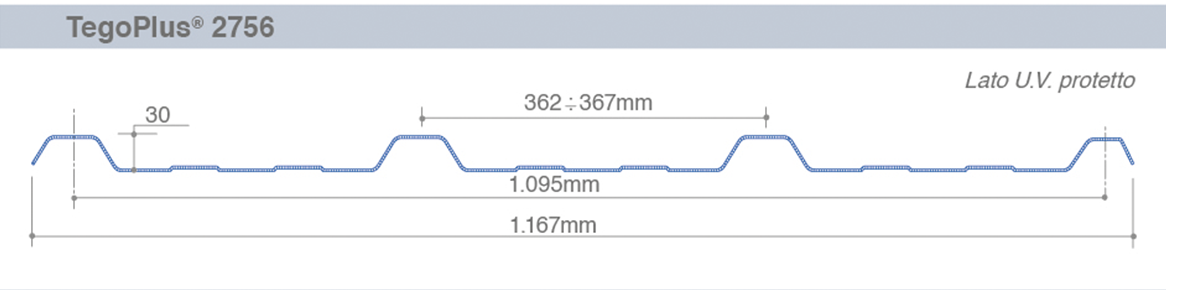

| TegoPlus 2756 | 362÷367mm | 1167mm | 1095mm | ||

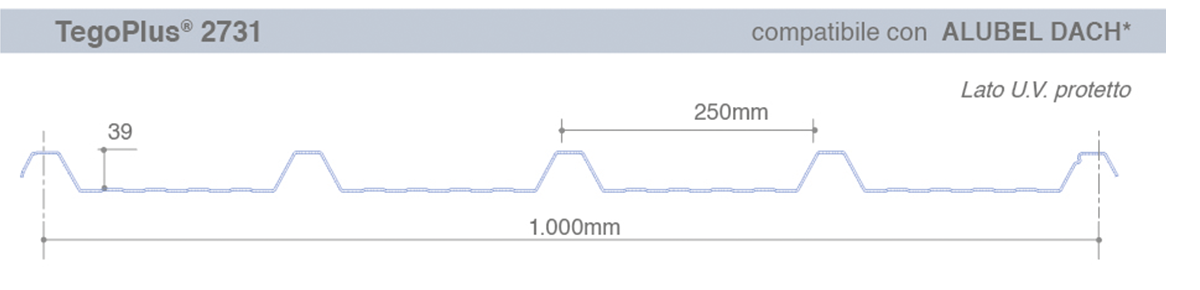

| TegoPlus 2731 | 250mm | 1000mm | Alubel Dach | ||

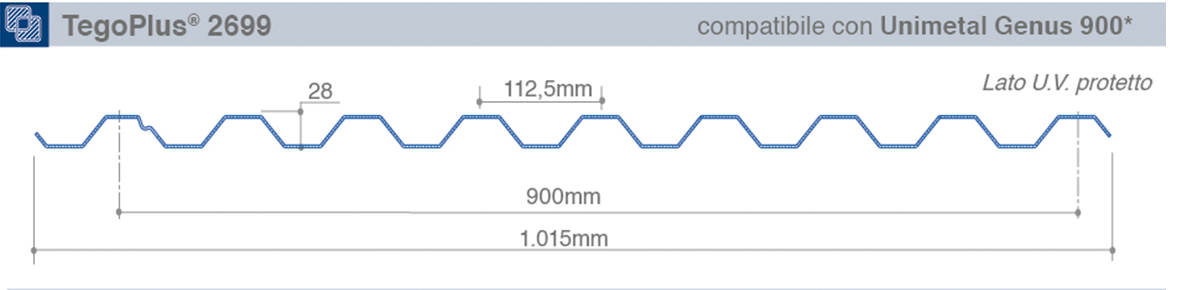

| TegoPlus 2699 | 112.5mm | 1015mm | 900mm | Unimetal Genus 900 | |

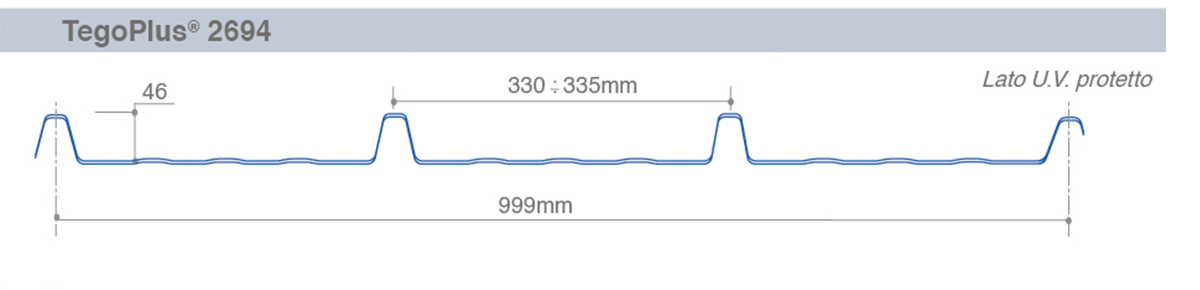

| TegoPlus 2694 | 330÷335mm | 999mm | |||

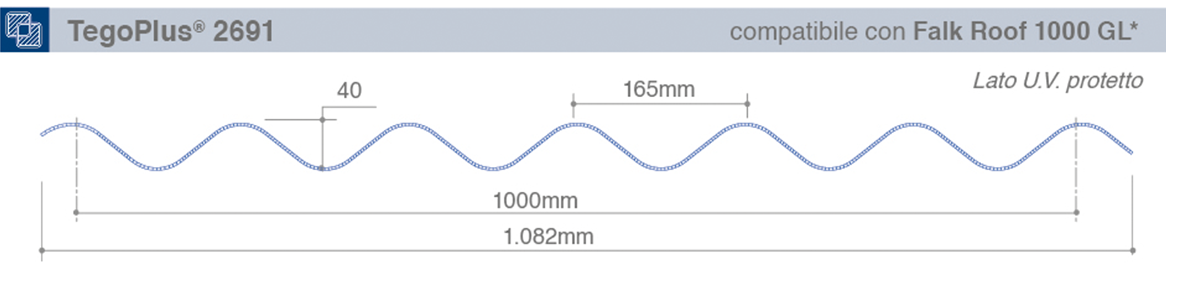

| TegoPlus 2692 | 200mm | 1081mm | 1000mm | Falk 1000/35 TR | |
| TegoPlus 2690 | 200mm | 900mm | 800mm | ||
| TegoPlus 2681 | 112mm | 1014mm | 893mm | Alubel 28 | |
| TegoPlus 2682 | 250mm | 1000mm | Isolpack Delta 5 | ||
| TegoPlus 2683 | 250mm | 1000mm | Lattonedil Euro 5 | ||
| TegoPlus 2684 | 112mm | 1237mm | 1116mm | Alubel 28 | |
| TegoPlus 2685 | 250mm | 1000mm | Isopan Isocop 5-1000 | ||
| TegoPlus 2687 | 250mm | 1000mm | Italpannelli Penta 01 |
Fastening of TEGOPLUS® sheets must be carried out onto the structures on each high crest, with 6.3×80 mm screws equipped with gaskets supplied by dott.Gallina. The use of other types of fasteners may alter the sheet’s resistance. For fastening, it is advisable to pre-drill with a metal bit of a diameter 2 mm greater than that of the screw. Excessive tightening of the fasteners can prevent the movement of the sheets due to thermal expansion, compromising their seal.
TEGOPLUS® sheets can be cut with a fine-tooth circular saw at high rotational speed, taking care to feed slowly. Jigsaws or shears can also be used. In any case, it is important to support the sheet near the cutting point and to remove the dust generated by the cut itself.
At the edge of the roofing, the sheets must not protrude beyond the eaves by more than 100 mm
Provide a minimum overlap of TEGOPLUS® sheets of 120 mm

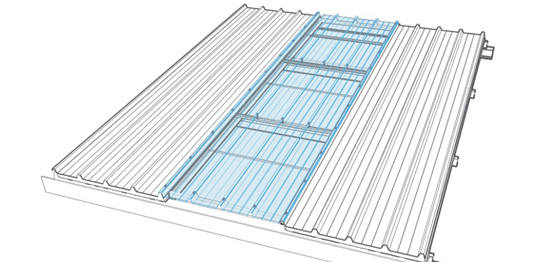

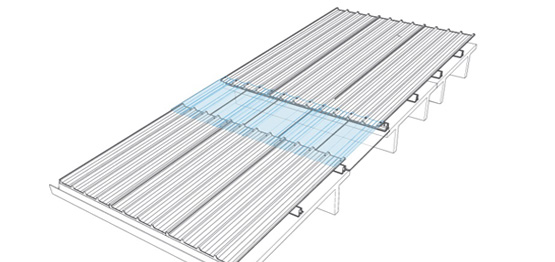

The different sections of TEGOPLUS® sheets, compatible with most insulated panels and profiled sheets on the market, make this product ideal for the construction of transverse in-plane skylights. During installation it is necessary to install the roofing sheets with the overlap on the side opposite to the prevailing winds.
TEGOPLUS® sheets allow perfect lateral overlap with all roofing systems, enabling the construction of ridge-to-eaves skylights. To avoid possible cracking at the fasteners due to linear thermal expansion, the maximum recommended useful length of TEGOPLUS® sheets is 5,000 mm.

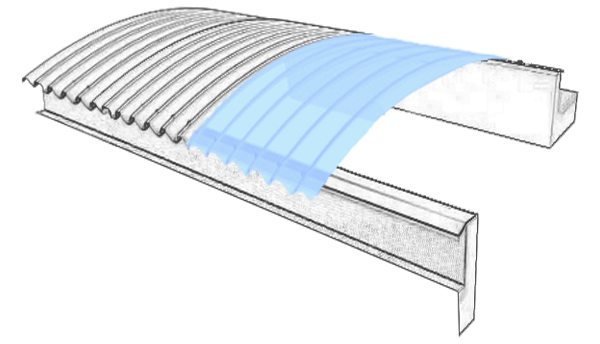

Application available only for TegoPlus® profiled ribs 2681 and 2684. A minimum slope of 7% is recommended.
